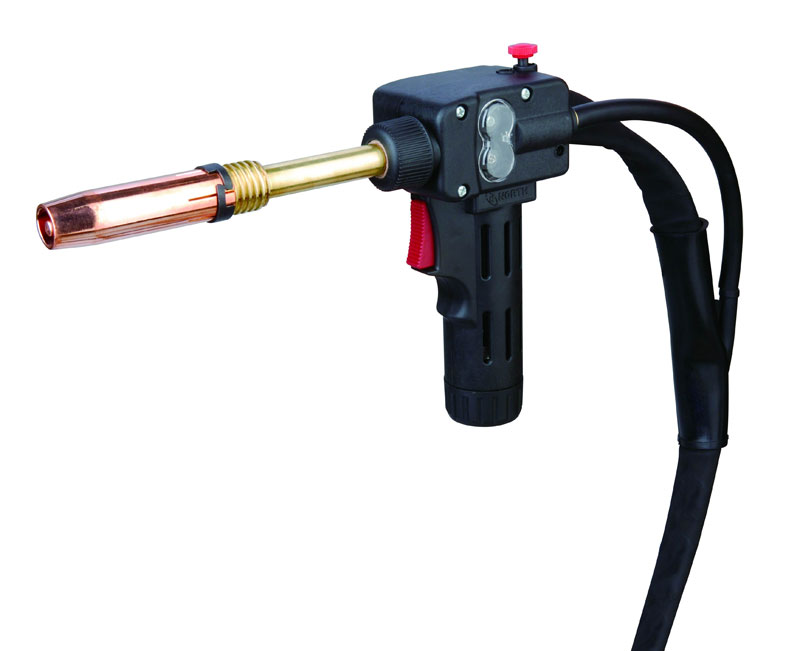

PortuguêsPush Pull MIG Gun, Wire Feed Welding Gun / Welding Torch

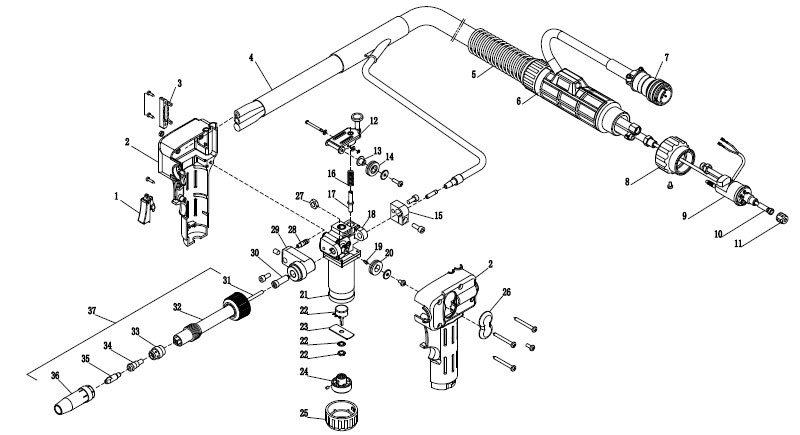

| No. | Part No. | Description |
| 1 | EJ0003 | Trigger Switch |
| 2 | LTH2101 | Gun Handle |
| 3 | LTH2111 | Cable Clamp |
| 4 | LTL2060 | Cable Assembly 6m |
| 5 | SS5201 | Back Spring Cable Support |
| 6 | SH5201 | Back Handle |
| 7 | MV0010 | 10 Pin Plug |
| 8 | EP3001 | Torch Plug Nut |
| 9 | LTU2001 | Euro Torch Plug |
| 10 | LTR2210-6 | Steel Liner 0.8-1.0mm×6mm |
| LTR3212-6 | Steel Liner 1.0-1.2mm×6mm | |
| LTR2310-6 | Teflon Liner 0.8-1.0mm×6mm | |
| LTR3312-6 | Teflon Liner 1.0-1.2mm×6mm | |
| 11 | EU1011 | Nut M10×1 |
| 12 | LTY2001 | Press Arm Plate |
| 13 | LGX2015 | Bearing |
| 14 | LGX2016* | Push Roll 0.030/0.035 inch (0.8/0.9mm) |
| LGX2017 | Push Roll 0.047 inch (1.2mm) | |
| 15 | LTX2015 | Wire Reel Clamp |
| 16 | LGX2012 | Press Arm Spring |
| 17 | LGX2011 | Press Arm Bolt |
| 18 | LGX2001 | Gearbox Assembly |
| 19 | LGX2018 | Woodruff Key |
| 20 | LGX2019* | Wire Feed Roller 0.030/0.035 inch (0.8/0.9mm) |
| LGX2020 | Wire Feed Roller 0.047inch (1.2mm) | |
| 21 | LZ3601 | Motor |
| 22 | Q8210* | Potentiometer 10KQ |
| Q8205 | Potentiometer 5KQ | |
| Q8201 | Potentiometer 1KQ | |
| 23 | LTZ2012 | Potentiometer Housing |
| 24 | LTZ2013 | WFS Control Knob |
| 25 | LTH2112 | Handle Lock Nut |
| 26 | LGH2011 | Transparent Cover, Drive Roll |
| 27 | LGF2111 | Nut |
| 28 | LTX2013 | Gas Connector |
| 29 | LTX2012 | Conductive Contact |
| 30 | LTX2011 | Inner Core of Conductive Contact |
| 31 | LTR21134* | Liner Used for 180° Torch Neck |
| LTR21142 | Liner Used for 45° Torch Neck | |
| 32 | LTF2111 | Straight Torch Neck |
| LTF2112 | Curved Torch Neck | |
| 33 | ED2001 | Diffuser |
| 34 | EC2001 | Contact Tip Socket |
| 35 | EB2208 | Contact Tip 0.8mm |
| EB2210* | Contact Tip 1.0mm | |
| EB2212 | Contact Tip 1.2mm | |
| 36 | EA22125 | Nozzle 12.5mm |
| 37 | LTF21180* | 180° Torch Neck |
| LTF2245 | 45° Gun Neck | |
| 38 | LTR31160* | Liner Used for 180° Torch Neck |
| LTR31168 | Liner Used for 45° Torch Neck | |
| 39 | LTF3111 | Straight Torch Neck |
| LTF3112 | Curved Torch Neck | |
| 40 | ED3001 | Diffuser |
| 41 | EC3002 | Contact Tip Socket M8×32 |
| 42 | EB3210* | Contact Tip 1.0mm M8×10×30 Ecu |
| EB3212 | Contact Tip 1.2mm M8×10×30 Ecu | |
| EB3210L | Contact Tip 1.0mm M8×10×30 CuCrZr | |
| EB3212L | Contact Tip 1.2mm M8×10×30 CuCrZr | |
| 43 | EA3216 | Nozzle 16mm |
| 44 | LTF31180* | 180° Torch Neck |
| LTF3245 | 45° Torch Neck |
Note: * denotes standard build. The part number should be marked out when customer choosing the accessories.
